Introduction
If some or all of your keys are not working, you may need to place your laptop's keyboard. This guide will help you through this process.
Tools
-

                  -
            Flip the laptop over and locate the battery release switch.
-

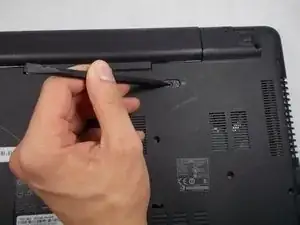

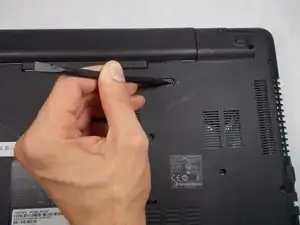

            Insert the pointed end of the spudger into the battery release switch.
-

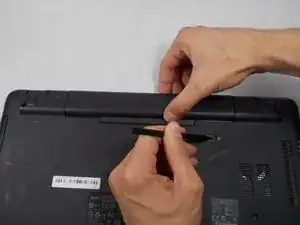

            Push the battery release switch to the right.

-

-

                  -

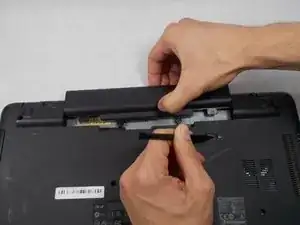

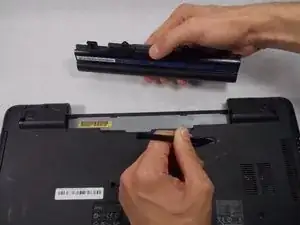

            While the battery release switch is pushed to the right, carefully slide the battery out of its socket.

-

-

                  -

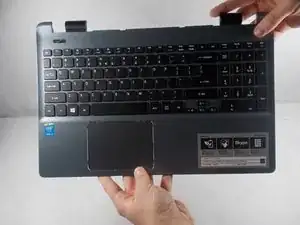

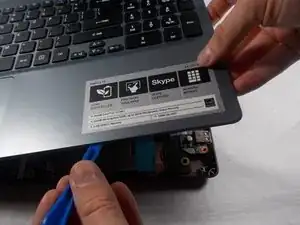

            Flip the keyboard cover upside down.
-

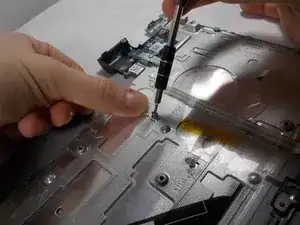

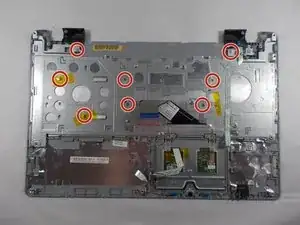

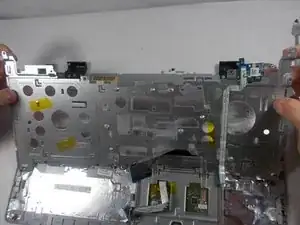

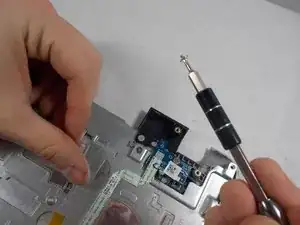

            Use the JIS #000 screw bit to remove the marked M1.4 x 2 mm screws from the back of the metal panel.

-

-

                  -

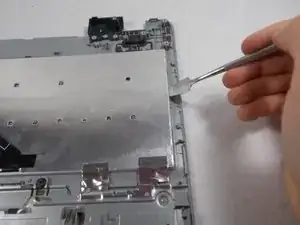

            Push the metal panel forward to unlock it from plastic holders on both sides.
-

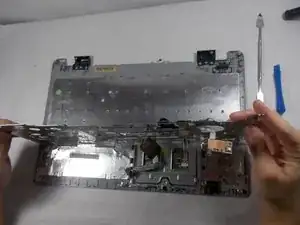

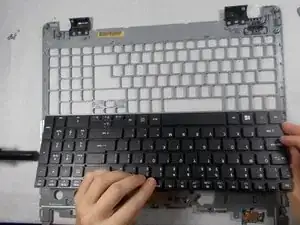

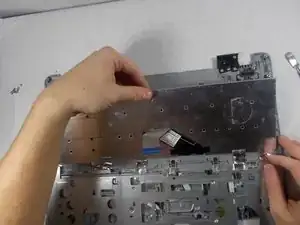

            Lift the metal panel up and peel it back to expose the keyboard component.

-

To reassemble your device, follow these instructions in reverse order.
