Introduction
Computer has no sound, sounds distorted is crackling. This guide will explain how to replace the speakers on an Acer Aspire E1-531-2438.
Tools
-


-

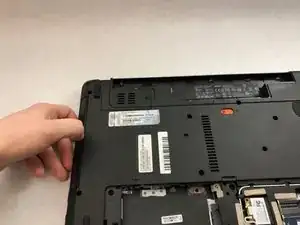

Turn the device over so the back side is facing up.
 -

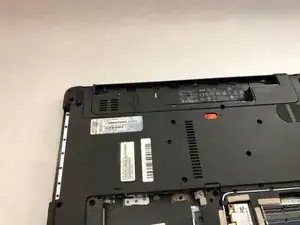

Using a spudger, slide the orange latch to the right. This will release the battery, which should pop up from the device.
 -

Use two hands tilt the side of the battery closest to the orange latch upward as shown in the images.

 -

 -


-

Tilt the side of the battery closest to the orange latch upward.
 -

Lift the battery up and out of the device.

 -

 -


-

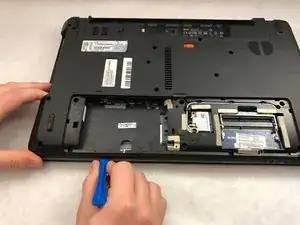

Using the indentation, pry open the access panel with your fingers or a spudger.
 -

Remove the access panel to expose the hard drive, WiFi chip, and RAM modules.

 -

 -


-

Grip the plastic tab on the hard drive, then pull to the left to unplug the drive from its socket.
 -

Once free from the socket, lift the hard drive up and out of the device.

 -

 -


-

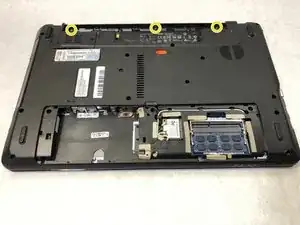

Using a Phillips #0 screwdriver, remove all of the following screws:
 -

Fifteen 9mm size screws
 -

One 6mm screw
 -

Three 3.5mm screws

 -

 -


-

Using a plastic opening tool, pry along the seam running the perimeter of the laptop to separate the bottom case from the palmrest assembly.
 -

Flip the device over and open the laptop so that the keyboard is visible.
 -

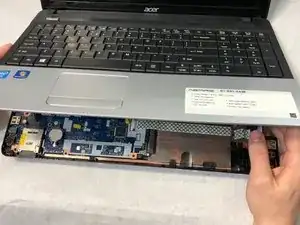

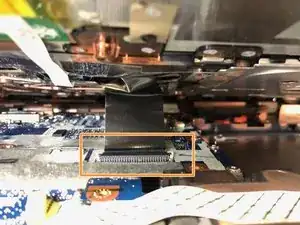

Lift up the palmrest assembly just far enough to access the connectors underneath.

 -

 -


-

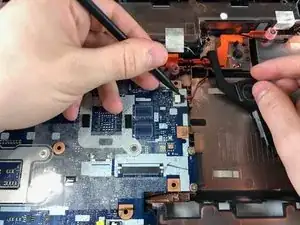

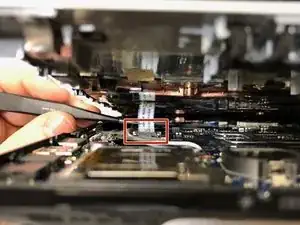

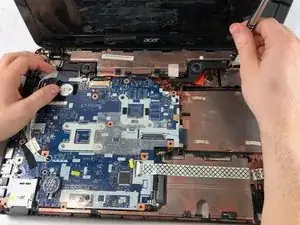

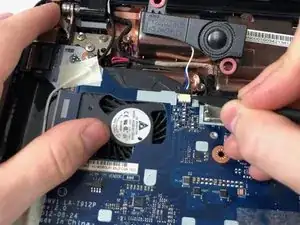

Using a spudger, disconnect the connector for the left speaker.
 -

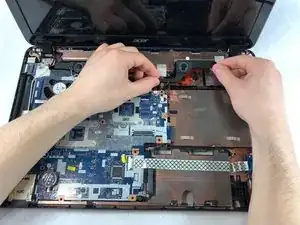

Disconnect the right speaker connector in the same manner.

 -

 -


-

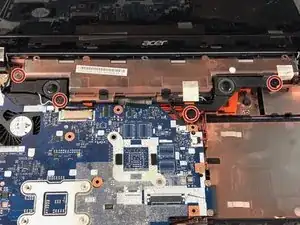

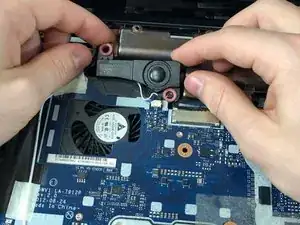

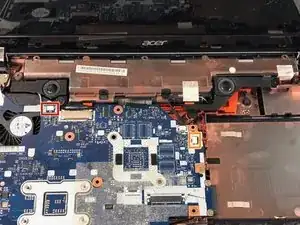

Using a Phillips #0 screwdriver, remove the four 3mm screws to release the left and right speakers.

 -


To reassemble your device, follow these instructions in reverse order.
