Acer Aspire 5750-6667 Memory Replacement

Written By: Chelsea Taylor
  • Comments: 0
Acer Aspire 5750-6667 Memory Replacement

Difficulty

Moderate

Steps

6

Time Required

4 - 10 minutes

Introduction

RAM in a laptop is often upgraded in order to make increase storage capacity and performance. RAM is easily replaced by removing 2 screws and pulling on two clamps that surround the RAM.

  1. dxBxyKRsSbWbhpQp
    dxBxyKRsSbWbhpQp
    RZ5ZYOTdTouXyLt6

    • Unplug the charging cable from the laptop and the wall. Failure to disconnect the charging cable could result in electric shock.

    • Turn the laptop over.

    • Locate the orange switch next to the battery.

  2. RxC5A1gkVlDWfjkS
    RxC5A1gkVlDWfjkS
    kqYaWPLSZLUSD6iH
    uAVbvFPYNZpFDEIO

    • Using a small tool such as tweezers or a pen, slide the orange switch completely to the left to unlock the battery.

    • While holding the orange switch in place, lift the battery by the lip and pull it away from the laptop.

  3. Mn3AIpATCQSQcZng
    Mn3AIpATCQSQcZng
    hXekyPrqvy6L46iS
    UUXii2wDlFFECcmJ

    • Flip the laptop over and locate the bottom access panel. It is opposite the battery.

    • Locate the 2 screws that hold the panel in place and unscrew them using a Phillips PH0 screwdriver.

  4. Pl6nAoovU2S2vT3E
    Pl6nAoovU2S2vT3E
    t1Pc3MYPWM3ZyB1U
    Cj3goSKyTUrob4j1

    • Use the blue plastic opening tool to lift the panel away from the laptop.

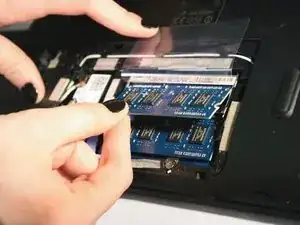

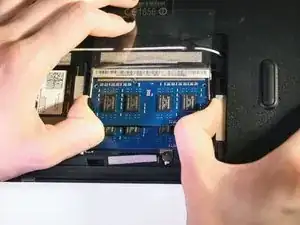

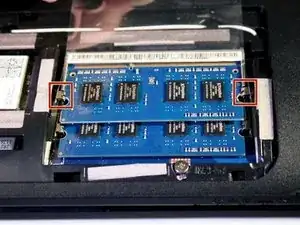

  5. bRQEVJbtGHGUacQt
    bRQEVJbtGHGUacQt
    Uhi4IdRKcvumNYeN
    jRuSvyllwq6WsfRW

    • Lift the clear plastic flap and locate the pair of metal brackets that are holding the top RAM in place.

    • Using your thumbs, push the brackets away from the RAM . It should pop up when released.

    • You can now gently pull the top RAM out of the laptop.

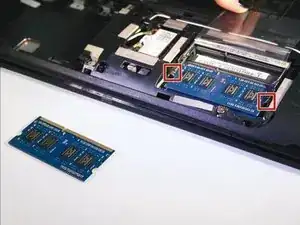

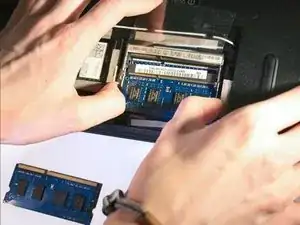

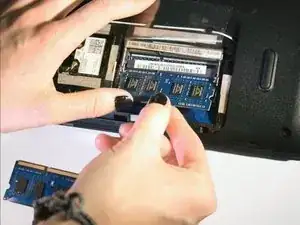

  6. kvBQBe6S32BZRoYQ
    kvBQBe6S32BZRoYQ
    HMNigfhmeiLZWyQf
    QcPJKVAHidAqBhws

    • Locate the second pair of metal clasps holding the bottom RAM in place.

    • Using your thumbs, push the brackets away from the RAM . The RAM board should pop up when released.

    • You can now gently pull the top RAM out of the laptop. Repeat for any other RAM boards that may be in the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
