Introduction

This guide will help you replace the display assembly on this device. Make sure the battery is removed before beginning.

  1. o2cQ1mDwSHg4PPQc

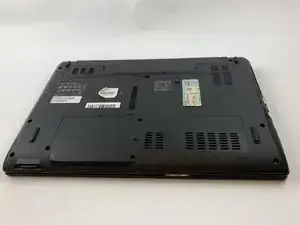

    • Turn over the laptop so the back is facing up.

  2. 1RmULLJbHvrtqwIT
    1RmULLJbHvrtqwIT
    D5sqKCplE3xXmvFL

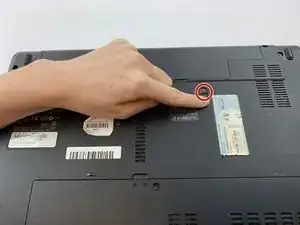

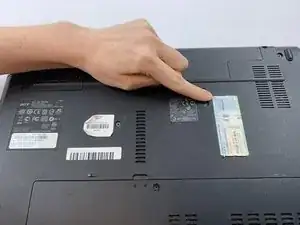

    • Next to the battery is a switch with a lock symbol on it.

    • Unlock the switch by sliding it to reveal a red unlock symbol.

  3. kPQIMLa3Cvc2Vm5h
    kPQIMLa3Cvc2Vm5h
    YAiNAKVKDNisKrmU

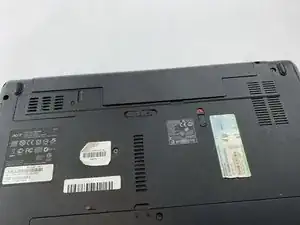

    • Pull the other switch completely while the red unlock symbol is still present. The battery pack should pop up a bit.

  4. DUH6vrRVaEElrbqk
    DUH6vrRVaEElrbqk
    eX3x5tsOWCj3ZP4O

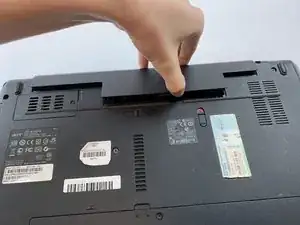

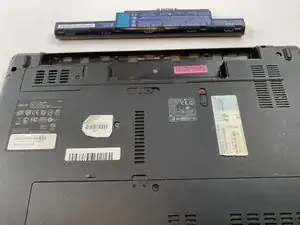

    • Remove the battery pack via the indentation at the top of the battery in between the two switches.

    Is that whole bar the battery? Or is the battery inside of the part that you removed And where to buy a battery

    Ellas laptop -

  5. YXuyVFaNiC25ddYl
    • Unscrew the 8.6 mm screws on the back panel with a Phillips #0 screwdriver.

  6. LZP5GowBovDjOvNF
    LZP5GowBovDjOvNF
    1PtX6NWO2hDefYYB

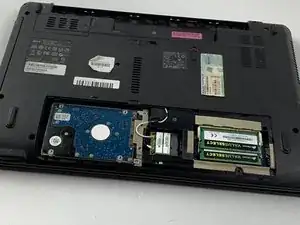

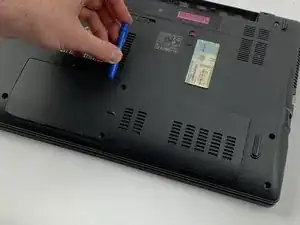

    • Using a plastic opening tool, lift up the panel and remove it completely.

  7. ydKPwYsICKI6sn4A
    ydKPwYsICKI6sn4A
    O4BrGvJlDbBJFg3g
    • Flip the laptop over as shown.

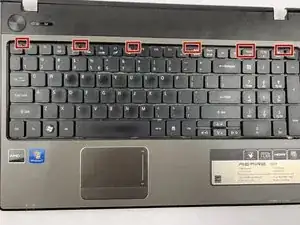

    • Locate the six tabs keeping the keyboard in place.

  8. DmlML2GadVtMsBfH

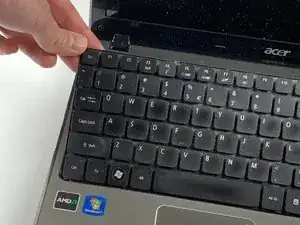

    • Pull on the edge of the keyboard using a spudger or your hands.

    • As you pull on the keyboard, push the tabs in one by one using small tweezers.

  9. EmBuL1LKvOV5GpRg

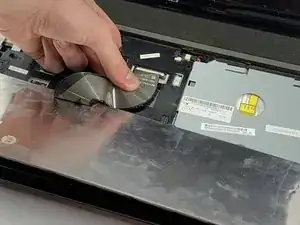

    • Once you pop it out and its separated, slowly turn it over to reveal its attachment to the connector.

    • Do not pull the keyboard out too hard because you risk damaging both the connector and the laptop.

  10. wDuqlRlbSHIyR5Qg

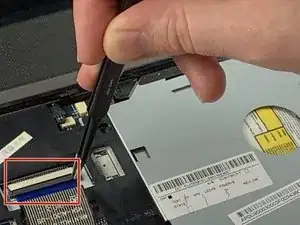

    • Using tweezers, slide the the tab down. This will release the connector that you can gently pull out of the socket.

    • If it does not come out easily, then you did not release it with the tabs and you risk ripping the connector.

  11. 3VZP6tcAnByGioKV
    • Once freed, remove the keyboard entirely and put it aside.

  12. 6LNaAOgtlpuokw2p
    6LNaAOgtlpuokw2p
    tPMlTJ1lKlN6onJs

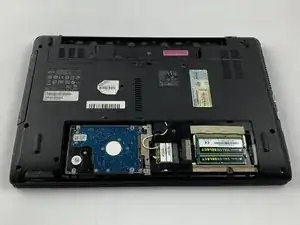

    • Flip the computer gently so that the back is facing you.

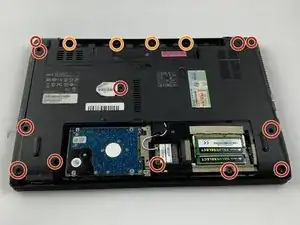

    • Remove all 12 of the 7.6 mm screws on the backside with a Phillips #0 screwdriver.

    • Remove 4 of the 5.4 mm screws on the backside with a Phillips #00 screwdriver.

  13. TJQohRgxcMKBQjIP
    • Flip the computer back over.

    • Unscrew the seven 5.6 mm screws located on the top cover using a Phillips #0 screwdriver.

  14. WQROJsZQPWuJvLvx
    • Locate the 4 connectors that must also be disconnected.

  15. paXqhpKXBdYyCobO

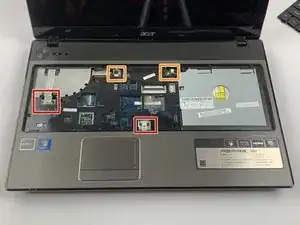

    • For the Power button cable and touchpad cable, please disconnect the connector using tweezers to pull down the brown tabs.

    • For the smaller right and left speaker cables, pull out the black tab completely also using tweezers.

  16. NJuMFJnxQTbiZjdL
    NJuMFJnxQTbiZjdL
    oF5CjrjAPkTQ2eKA

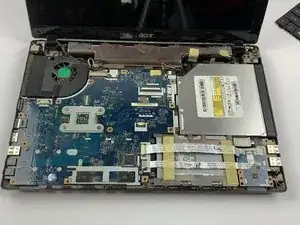

    • Using a plastic spudger or your hands, carefully lift up the corner of the top panel.

    • Continue to lift the panel until it is removed completely.

  17. DJvh2GMoxAJYMQcC

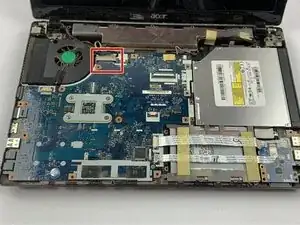

    • Locate the video cable connector keeping the screen connected to the motherboard.

  18. 32vAhsKeYkfElBxs
    32vAhsKeYkfElBxs
    xOJxSHkbPFasCSSD

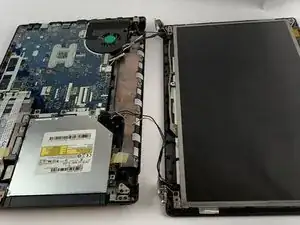

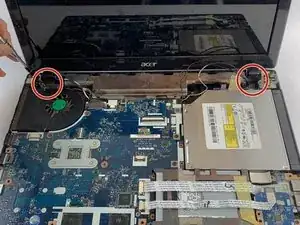

    • Unscrew the 8.6 mm bottom screws on the both hinges to separate the screen from the rest.

    • The computer is still connected to the backside of the motherboard so do not yank it off completely.

  19. 4OEUXroYmmeDDRju

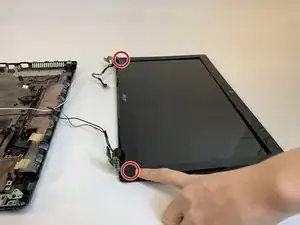

    • Remove the circle sticker and unscrew the 6.7 mm screws with a Phillips #0 screwdriver.

  20. NLWO4vWVRfCeOcwU

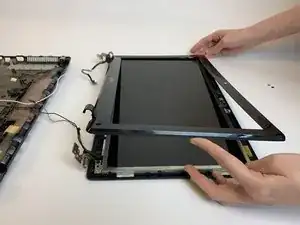

    • Peel back the screen carefully using a plastic spudger or your hands.

  21. f3CGjNnfwHVZbqIR

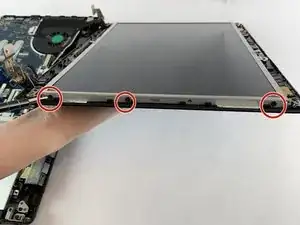

    • Using a Phillips #0 screwdriver, remove all six 3.6mm screws on the sides of the screen.

  22. ayaHat4wdquwaDFN

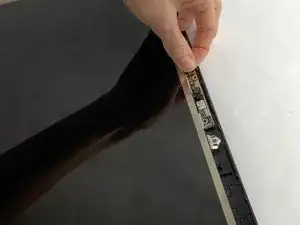

    • Disconnect the webcam connector by gently pulling on the tabs using your hands or tweezers.

  23. gNtNA43XhGQWwMVM
    gNtNA43XhGQWwMVM
    XNDJuMjEyxXqYcVe

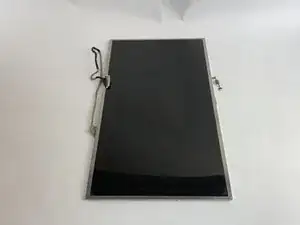

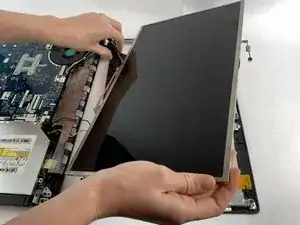

    • Remove the screen completely.

Conclusion

To reassemble your device, follow these instructions in reverse order.
