Introduction
This guide will show you how to replace the hard drive for the ASUS X552LAV-BBI5N08 laptop.
Tools
-
-
Slide the right button to the left.
-
Hold the left button to the right.
-
While you hold the left button in position, slide the battery out by pushing it away from you.
-
-
-
Start by flipping the laptop face down.
-

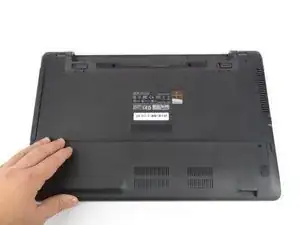

Locate the bottom panel. It is at the opposite end of the battery.
-

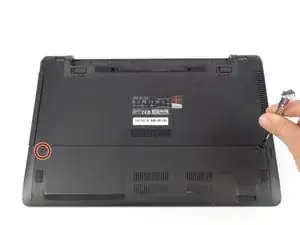

Remove the two 12mm screws at the bottom panel with a Tri-wing Y1 screwdriver.
-
-
-
Remove bottom panel by lifting it up.
-

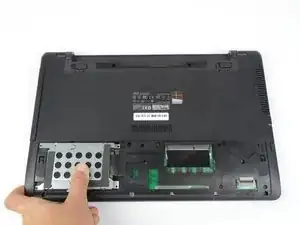

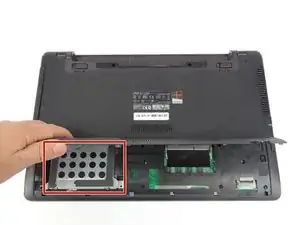

Locate the hard drive.
-
It is located in the bottom left corner.
-
-
-

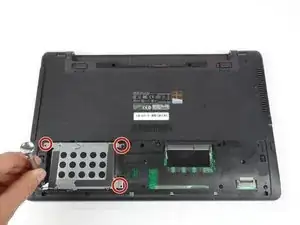

Remove the four 5.5mm screws located on the hard drive case using a Tri-wing Y1 screwdriver.
-

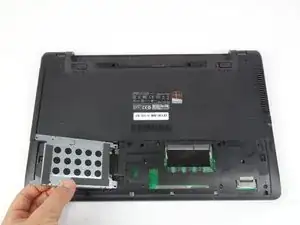

Slide the hard drive out to the left.
-
-
-

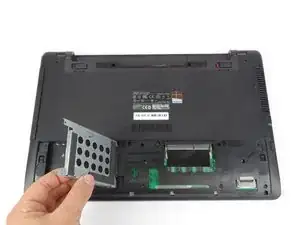

Lift the hard drive out.
-
Once the hard drive is removed, place the hard drive at a different area.
-
-
-
Place the hard drive on its side.
-

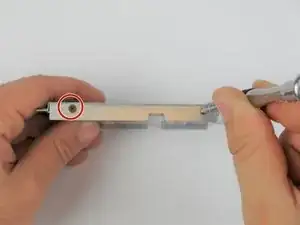

Remove the four 5mm screws from the sides of the case by using a Tri-wing Y1 screwdriver.
-

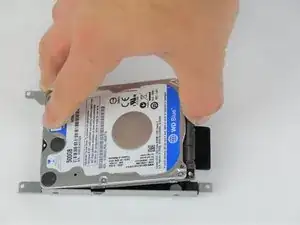

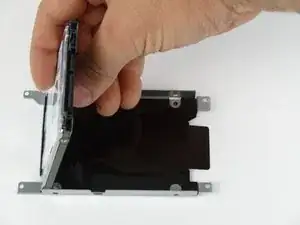

Lift the hard drive out of the case.
-
To reassemble your device, follow these instructions in reverse order.
