ASUS X44H-BBR4 Hard Drive Replacement

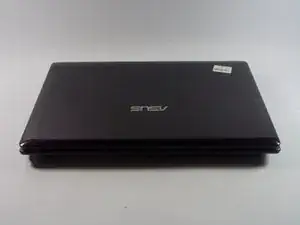

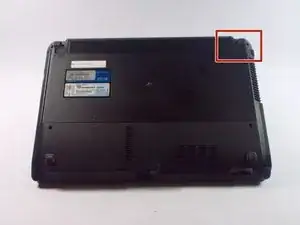

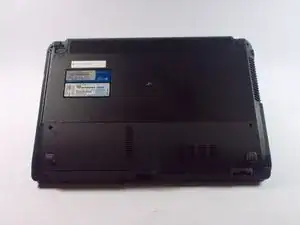

Flip the device over.

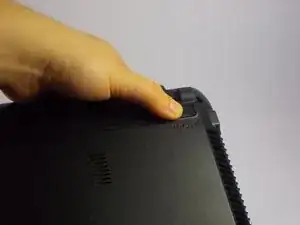

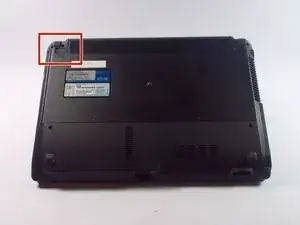

Slide the right lock button to the unlock position.

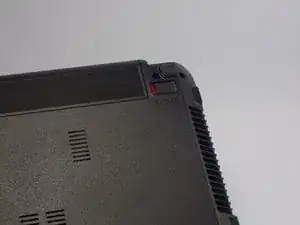

After it is unlocked, a red line will be visible.

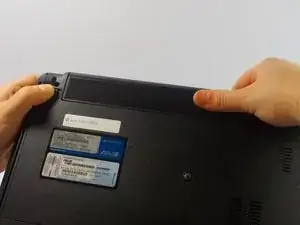

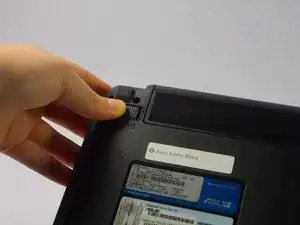

Slide the left lock button into the unlock position and hold.

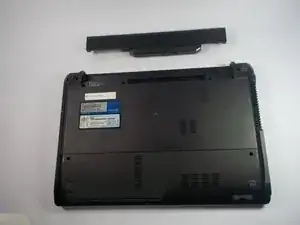

While holding the left lock button in the unlock position, push the battery from the center away from you.

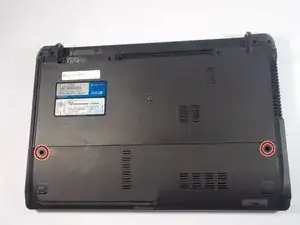

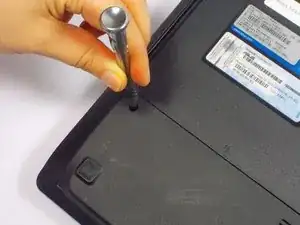

Remove the two 9 mm Phillips head screws with the PH0 bit indicated by the red circles in the picture.

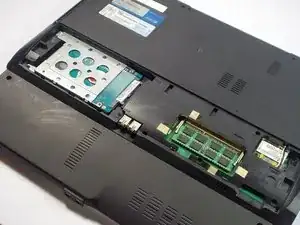

Once the screws are removed, slide the back panel away from the computer.

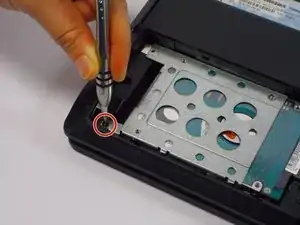

Remove the 9mm Phillips head screw in the left bottom corner of the hard drive with the PH0 bit.

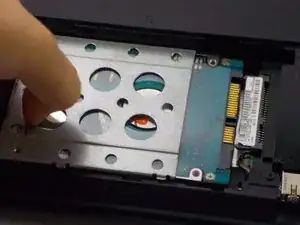

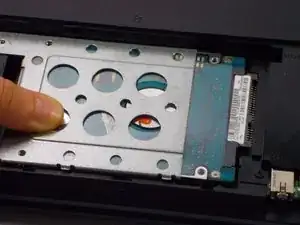

Slide the hard drive to the left, unlocking it from its default position.

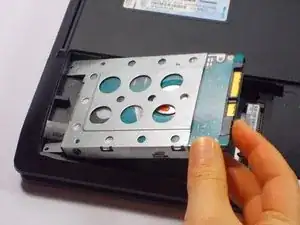

Pull the hard drive upwards and take it out of its position.

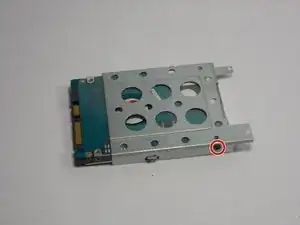

Remove two 3mm Phillips head screws, one located on each side of the metal casing holding the hard drive using the PH0 bit.

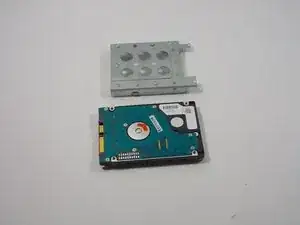

Pull upwards on the metal casing and it will come off.
