Introduction
Use this guide to replace the Scroll Wheel inside of the Asus ROG Spatha X
Tools
-
-
Use the pointed edge of a spudger to remove the four soft rubber covers on the underside of the mouse.
-
Use the included Torx screwdriver, or a T3 Torx screwdriver, to remove the four 4 mm screws.
-
-
-

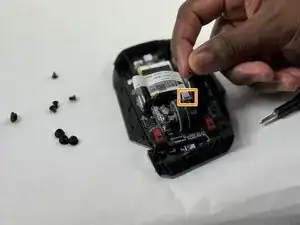

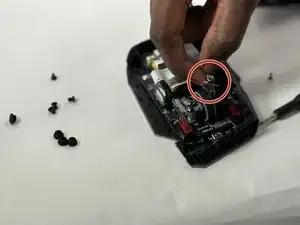

Remove the Phillips screw securing the ribbon cable scroll wheel.
-

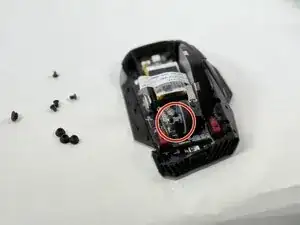

Disconnect the ribbon cable from the scroll wheel.
-
-
-
There is a plastic axle holding the scroll wheel in place. It is cinched into a plastic housing unit towards the right side of the mouse (towards the pinky rest).
-

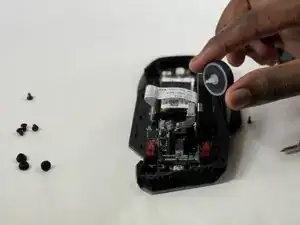

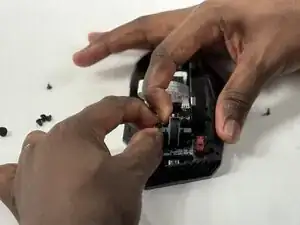

Use one hand to gently pull the housing for the axle away from the scroll wheel as you simultaneously use the other hand to pull up and away from the housing unit.
-
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
