Introduction

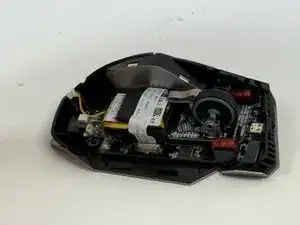

Use this guide if you are experiencing issues with the battery for the ASUS ROG Spatha X. This is a very easy replacement guide; the necessary tool should be included with your mouse in the box.
Tools
-
-

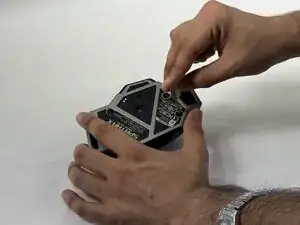

Use the pointed edge of a spudger to remove the four soft rubber covers on the underside of the mouse.
-

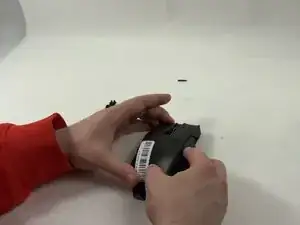

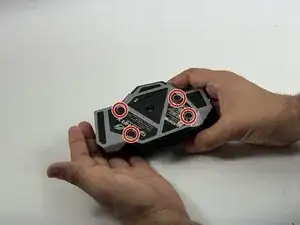

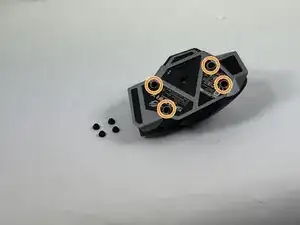

Use the included Torx screwdriver, or a T3 Torx screwdriver, to remove the four 4 mm screws.
-
-
-

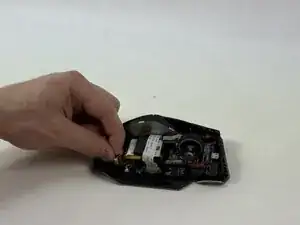

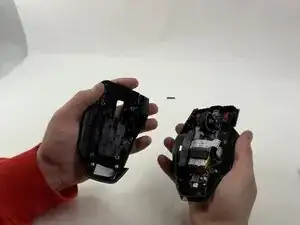

Disconnect the side button assembly ribbon cable from the motherboard.
-

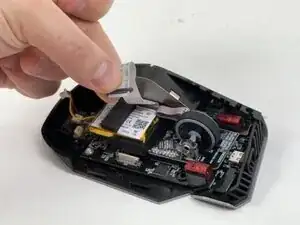

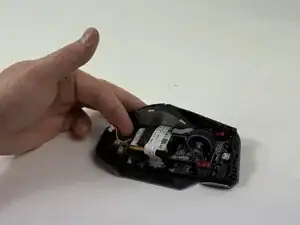

Use an opening tool to gently pry the battery up and out of the chassis.
-
Conclusion
For optimal performance, calibrate your newly installed battery after completing this guide.
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
