ASUS ROG G46VW Motherboard Replacement

Written By: Ruben Olivares
  • Comments: 1
ASUS ROG G46VW Motherboard Replacement

Difficulty

Moderate

Steps

21

Time Required

45 - 50 minutes

Introduction

Keep close track of your screws and where they came from while disassembling due to the number of screws that are going to be removed in this guide.

  1. BPw3EsdNxrIcjhuG
    BPw3EsdNxrIcjhuG
    bsklJRrIEikt3YFS

    • Lift the screw cover and remove the screw using a Phillips #0 screwdriver.

  2. ZWwdrEtJJosFZPBv

    • Remove the RAM cover by lifting the screw cover and pulling away firmly.

  3. p3HXLVvAWpU5SlfE
    p3HXLVvAWpU5SlfE
    eI11WhSJwbZyAh6t

    • Push outwards on the clips to release the RAM stick. The stick should pop up at an angle.

  4. cocGx5Uje4BSuVho

    • Pull out the RAM stick carefully.

    • Do not use a prying motion as this will damage the hardware. Be careful not to damage the gold section of the RAM stick.

  5. 4ECmKnJQIF2nIMak

    • Repeat steps 3-4 to remove the second RAM stick.

  6. 5DDfCTkbpAeeedqP

    • Gently pry the back hinge cover piece away from the device.

    You have to remove 3 screws from the bottom side first, two of them are phillips 0 under rubber pads and the third is torx in the middle.

    Jan Voběrek -

  7. PPEIRUH21KHqjhWZ

    • Disconnect the speaker cable from the motherboard.

  8. RHyNwMZXQFYiLDbl

    • Remove the two screws from underneath the RAM cover.

  9. k6ObjdybS634CWIE

    • Remove all of the screws from the bottom of the case.

    • If replacing the screen, remove the rubber feet to reveal two more screws.

  10. VYDqdNMVn2nU2B2H

    • Turn the laptop over and remove the screws as shown

  11. Q5G1kSPJEPeAvEw4

    • Carefully pry the keyboard away using your spudger and the opening tools.

    • Be sure not to damage the clips holding the keyboard to the bottom case.

  12. 51CtUDAIONXVfrjQ
    51CtUDAIONXVfrjQ
    uk1ZYr4WtCNUkkee

    • Detach the ribbon cable by releasing the clip

  13. JEvNWMomuQtEyVWl
    JEvNWMomuQtEyVWl
    NCaGIkWlKjVA1RtG

    • Remove screws from silver braces.

  14. XSfokihGbBON4PZD

    • Use tweezers to remove golden screw caps.

  15. GYDkvyM26oRkcmNe

    • Remove tape and gently pull up on golden cap connectors to disconnect them.

  16. xM5QTJnCpMEhitAC

    • Gently pull the white connector until it comes loose.

  17. BgNRSHnnxnXJveQU

    • With the motherboard exposed, locate the Indicator Lights and their white plastic housing piece.

  18. Uhk31KQVfQBTYK5h

    • Remove all 3 screws from the motherboard connection using the Phillips #0 screwdriver.

    • Pull the plastic white housing piece away from the case.

  19. parK4UslONgWjsfW

    • Locate the flat LED cable that connects the lights to the motherboard.

    • Flip the black cover upwards before pulling on the cable.

    • Repeat for the other connector piece.

  20. cAcAnaTaV6MvMx12

    • Locate and remove the screws.

    • Removing the screws allows you to lift up the motherboard

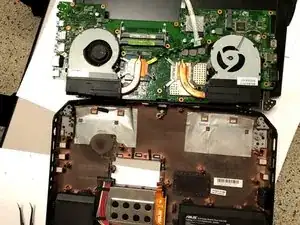

  21. nwEM1jAOM51Bm1wT

    • After lifting the motherboard up you can replace any component on it, such as the fans.

Conclusion

To reassemble your device, follow these instructions in reverse order.
