ASUS Q324UA-BHI7T17 Track Pad Replacement

Written By: Gabriel survance
  • Comments: 0
ASUS Q324UA-BHI7T17 Track Pad Replacement

Difficulty

Moderate

Steps

10

Time Required

10 - 15 minutes

Introduction

If the mouse isn’t properly tracking your movements, the trackpad may be faulty. Use this guide to replace the trackpad in your device.

  1. OYddONRAhBZp4bSg
    OYddONRAhBZp4bSg
    iMuX4plmiKp2MvkN

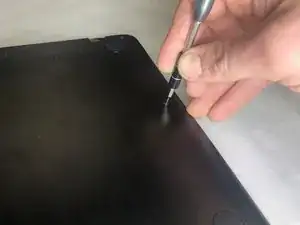

    • Remove all ten 5mm screws from the backplate using a Phillips #0 Screwdriver.

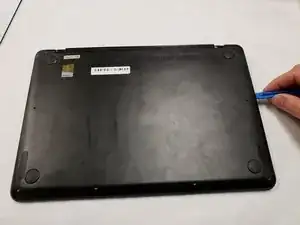

  2. aXXUYDcSqeDG2nFR

    • Carefully remove the backplate using the plastic opening tool.

  3. bF2AwmqyhRaXdqK3

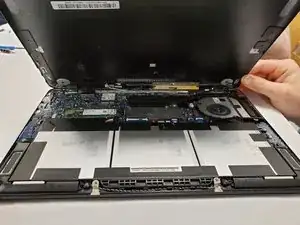

    • Lift up the back plate and slide it to the back of the computer to remove.

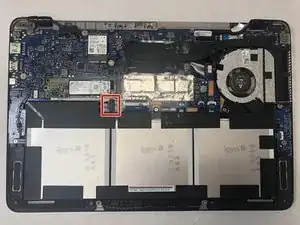

  4. byeyXFUP5uY4nZik
    byeyXFUP5uY4nZik
    4CWxrAdGdTWWmAT6
    l1XH1DCiR2WvpPbv

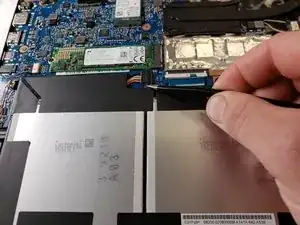

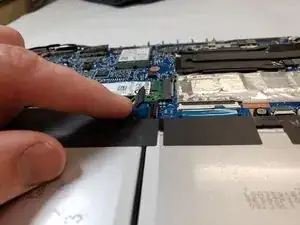

    • Disconnect the battery from the laptop in the upper left side of the battery, using tweezers.

  5. eB2wYwWSpFgGIMOg

    • Remove the six 5 mm screws holding the battery using a Phillips #0 screwdriver.

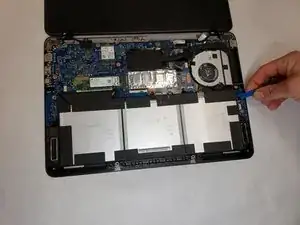

  6. cLnXvxHYd3TT4D2k

    • Carefully remove the battery using the plastic opening tool.

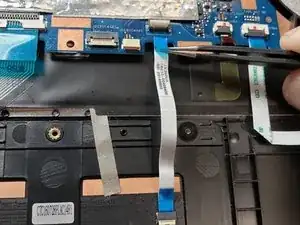

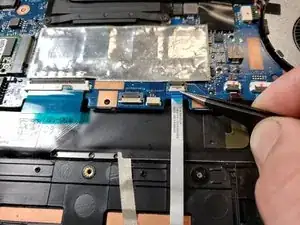

  7. nTgYWdSnqmUmkHBi
    nTgYWdSnqmUmkHBi
    IJekEeUDXBJQYZic
    VMU3TW2nmAZYYX1o

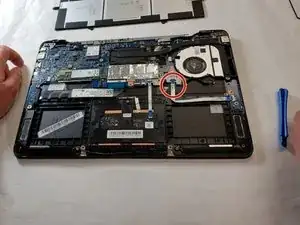

    • Disconnect the trackpad from the motherboard using tweezers.

    • The white tab flips up.

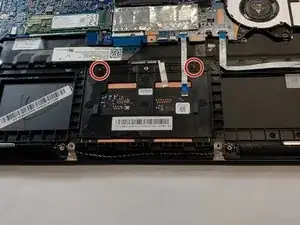

  8. JlgchwBDkIgqVNLf
    JlgchwBDkIgqVNLf
    rdXLIk2BBCmV5ukf

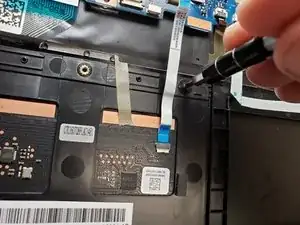

    • Remove the two 5mm screws holding in the trackpad using a Phillips #0 screwdriver.

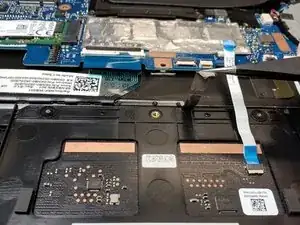

  9. 1PSCn4wVT4fMACaq
    1PSCn4wVT4fMACaq
    aFZNvqOcPJXYhh6V

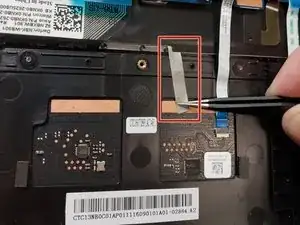

    • Remove adhesive tape tethering the trackpad to the motherboard with tweezers.

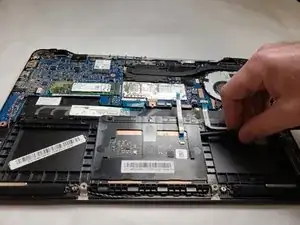

  10. aQiMLrWrprYAHAIH
    aQiMLrWrprYAHAIH
    IjVLlGfhIbRKEpEF
    mHJ5iIThYb2piODH

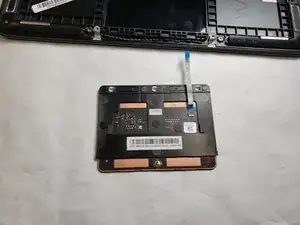

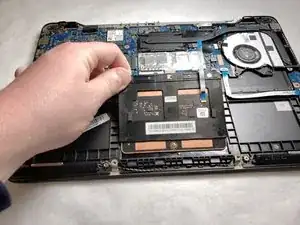

    • Carefully remove the trackpad using the plastic opening tool.

    • Lift up and side track toward the back of the computer to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
