Introduction
If your laptop is having trouble with identifying external USB devices, you may have to replace the port. After ensuring that it is not a software issue, you can use these steps to remove the USB port board.
-
-
Place the laptop with the bottom side facing up. Have the front (where the touchpad is) facing toward you.
-

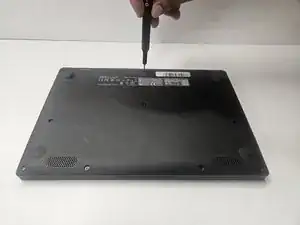

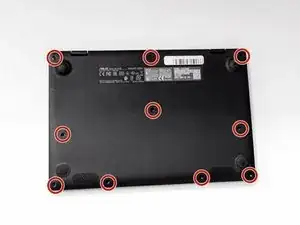

Start by removing the ten 7mm screws on the bottom of the laptop using a JIS #00 screwdriver.
-
-
-
Double-check to make sure all of the screws are removed.
-

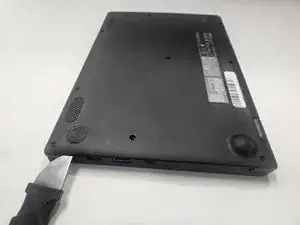

If you have a Jimmy or other flat, straight-edge object, slide it in the crack where the halves of the case meet.
-

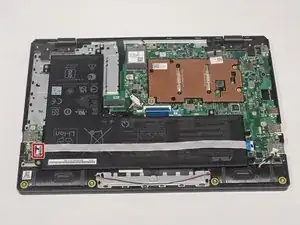

When the parts are separated, pull them apart to expose the insides of the case.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
