ASUS Chromebook C200MA DS01 Wireless Card Replacement

Written By: Christopher Lim
  • Comments: 1
ASUS Chromebook C200MA DS01 Wireless Card Replacement

Difficulty

Easy

Steps

7

Time Required

5 - 10 minutes

Introduction

This guide will take you through a step-by-step process for the removal of your Chromebook’s wireless card.

  1. QOqEWOE3ChjVEjFk

    • Before proceeding, power down your Chromebook. Close the display and lay it on a soft surface, top-side down.

    • Remove the five 8.4 mm Phillips #0 screws.

    • Remove the four 4.6 mm Phillips #0 screws.

  2. snNXDQ2grhFEgCeA

    • Use the plastic opening tool to gently work around the edge of the Chromebook until the back panel starts to lift off.

  3. qnsNoJntkABOhrAU

    • Remove the back panel by lifting it away from the Chromebook.

    • Some clicking will be heard as the panel is removed from the back, this is completely normal.

  4. NQYF6V6TnmG2FoSE
    NQYF6V6TnmG2FoSE
    UnCLUX1VRlSYjCIo
    gdWYZjfesf2rWH4c

    • To disconnect the battery, pinch the multi-color bundle cable with your thumb and forefinger and pull directly back.

  5. p2kbHlYlmSGYsdPJ

    • Remove the silver 2.8 mm Phillips #0 screw from the wireless card.

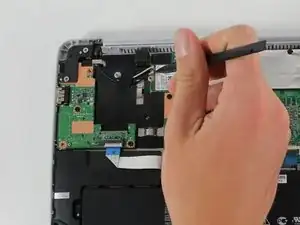

  6. KHI5LnPfWSLPuTW4

    • Use a spudger to disconnect the white and black antenna cables connected to the wireless card.

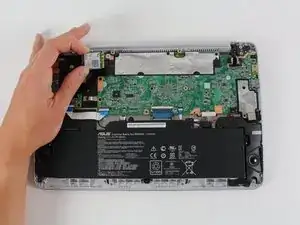

  7. 6TL2b4nuW4kvL1E5
    6TL2b4nuW4kvL1E5
    UsUKSXF1ZEISfBEl

    • Grab the wireless card between your thumb and index finger and pull directly away from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
