ACER Aspire E1-572-6870 Hard Drive (HDD) Replacement

Written By: Cody Lim
  • Comments: 0
ACER Aspire E1-572-6870 Hard Drive (HDD) Replacement

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

Using this guide will allow you to replace your hard drive.

  1. MM2tMSvY4BeluLxm

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Flip your laptop over so the back panel is facing upwards.

    • Locate the lock switch below the battery.

  2. VARkRqnNXlwLgPoa
    VARkRqnNXlwLgPoa
    QOOidQNyoJLPQAEY
    25M3Km242JQPNtCK

    • Slide the lock switch to the right using your finger or a spudger.

    • At the same time, grasp the battery with your other hand and slide it out of the laptop.

    • Remove the battery.

    • To reinsert or replace the battery, simply line up the tabs on the battery with the laptop and slide it straight back in. There is no need to move the lock switch.

  3. YX11RHE2TNQOdoVX

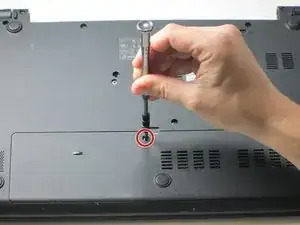

    • Unscrew the one 8mm Phillips #0 screw from the bottom panel.

  4. Q2kNRWyZMcT3Usrr
    Q2kNRWyZMcT3Usrr
    HggbepNHuSISPZVw
    JkK3TpYvBThkTdaC

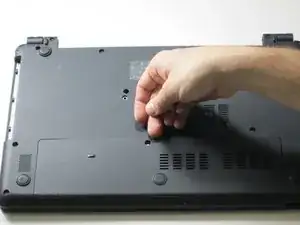

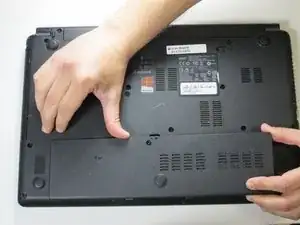

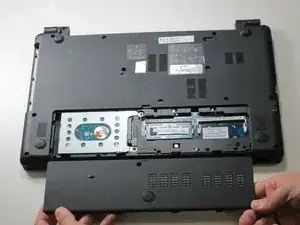

    • Remove the back panel by carefully disengaging it around the edges and then pulling upwards.

  5. ZHG1AIFbtT1ZlKyS

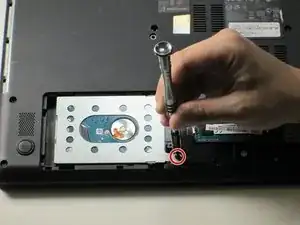

    • Remove the other 8mm Phillips #0 screw holding the hard drive to the rest of the laptop.

  6. D5VoNHJ1AVtrrhYZ
    D5VoNHJ1AVtrrhYZ
    ROWWYUNcW4kiibUc

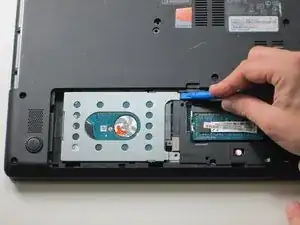

    • Slide the hard drive to the left using a plastic opening tool.

  7. TADyUusX4SXsQroX
    TADyUusX4SXsQroX
    UP2ZjVKRKZIqwH13
    KrglU2AQ2oMpDHFu

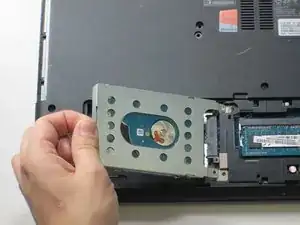

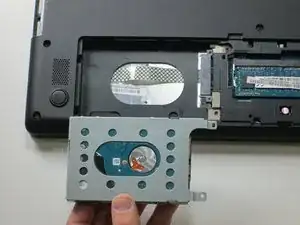

    • To remove the hard drive, pull up and to the left using the plastic tab as shown on the left side of the hard drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
