ACER Aspire 7750G-6645 RAM Replacement

Written By: Dylan Souza
  • Comments: 0
ACER Aspire 7750G-6645 RAM Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

This guide demonstrates the removal of the RAM for an ACER Aspire 7750G-6645 laptop. This may be helpful if the computer is running slowly, or is having general memory issues.

  1. IYVsTe4BdeScbg62

    • Remove three 60mm Phillips #00 screws that are holding the bottom cover in place.

  2. kJpZJmlhaiMCbouF

    • Lift up the back cover of the device, you may need to use a spudger to assist.

  3. OQ4maMQiyGQDWwOH
    OQ4maMQiyGQDWwOH
    6Cj5SbIWCPyQ6SHE
    RBDArTZMR2D6dBpG

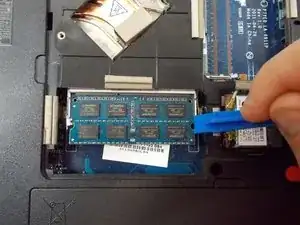

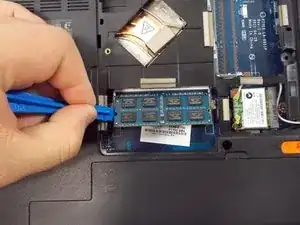

    • Using the iFixit opening tools, gently pry the connectors away from the RAM.

  4. JFtrIlT5pNnHkQWA

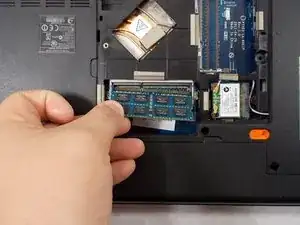

    • Pull the RAM up and out of the socket.

    • Repeat the same process for the other RAM stick.

Conclusion

To reassemble your device, follow these instructions in reverse order.
