Introduction
This guide demonstrates step-by-step on how to change your tail lights. It is a relatively easy process and with this alone, you can change the actual tail lights themselves and any light within the taillight.
-
-
Open the tailgate.
-

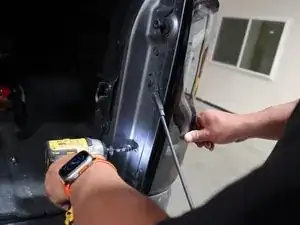

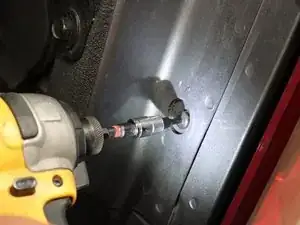

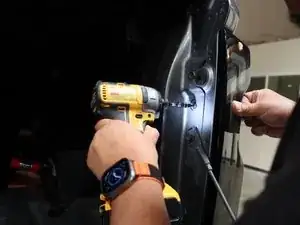

Remove the top and bottom T15 screws from each side of the tail lights.
-

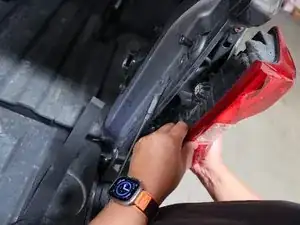

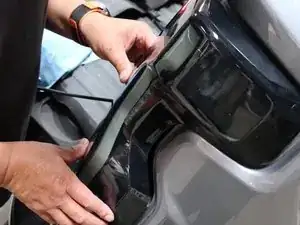

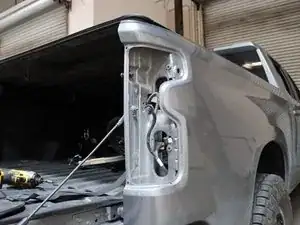

Gently remove the tail lights by pulling outward.
-
-
-

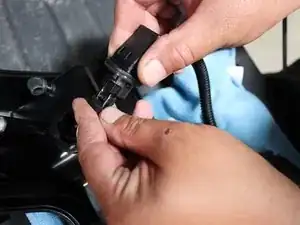

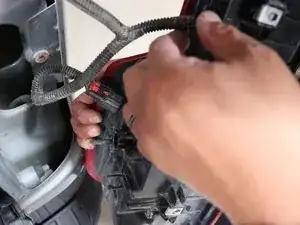

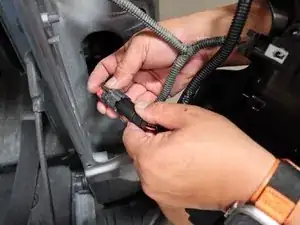

Plug the brake lights connector.
-

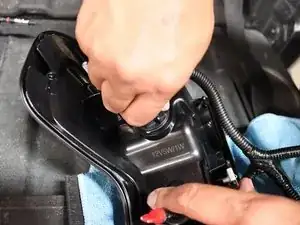

Twist and secure the socket tightly.
-

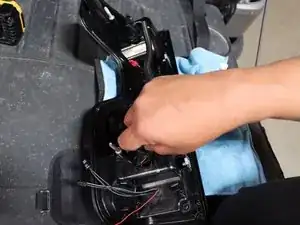

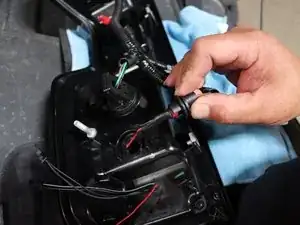

Plug in the turn signal bulb connector. Twist and secure tightly.
-
-
-

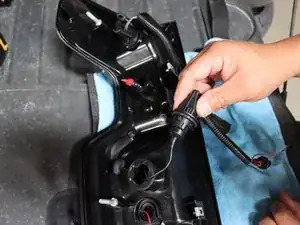

Plug in the parking lights connector. Twist and secure the socket tightly.
-

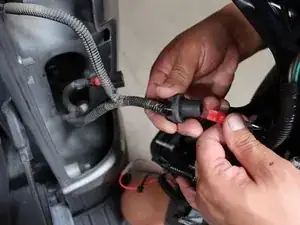

Plug in the TURN SIGNALS connector. Please follow the same steps for the other side of the tail lights.
-

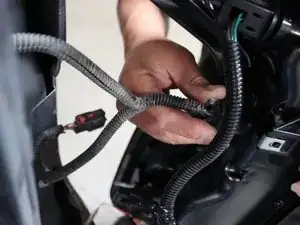

Make sure all the connections are plugged and tight. Also ensure that the caps are sealed.
-
-
-
First, remove the reverse light bulb from the vehicle.
-

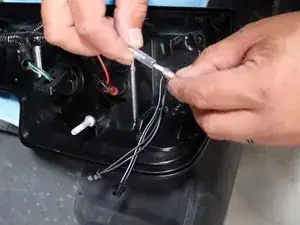

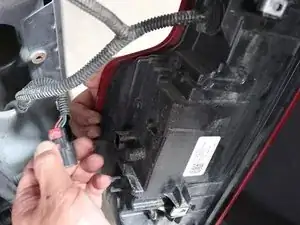

Then, connect the socket to the reverse light connector from the new tail light.
-
To reassemble your device, follow these instructions in reverse order.
