Introduction
Tools
-


-

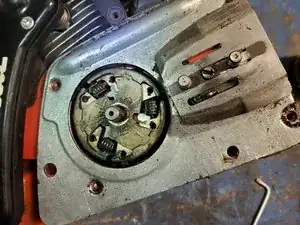

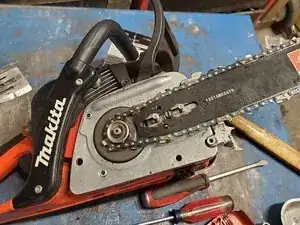

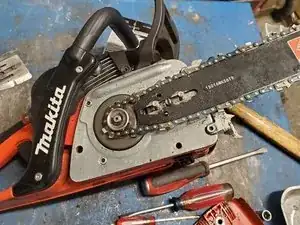

Remove four T27 torx screws, keep note of the different lengths the longer two in the front also hold the bumper spike.

 -

 -


-

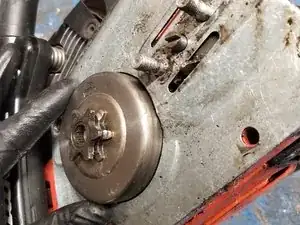

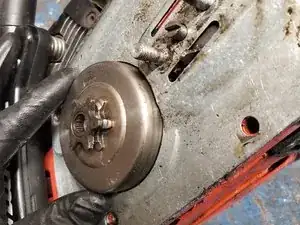

Remove the lock washer with a flathead screwdriver then release the chain brake to remove clutch drum.
 -

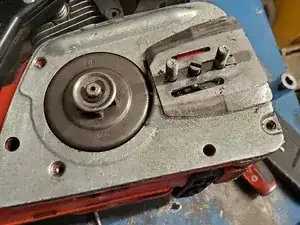

With the chain brake disengaged add your new clutch drum then reinstall the four T27 screws
 -

Add bar and chain then reinstall cover and 1/2 inch* flange nuts

 -



                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
