2010-2014 Ford Mustang New Front Grille Emblem Replacement

Written By: Christopher Pell

Comments: 1

2010-2014 Ford Mustang New Front Grille Emblem Replacement

Difficulty

Easy

Steps

Time Required

20 minutes

Introduction

Tools

6-in-1 Screwdriver

Step 1

Pull the latch by the drivers feet to open the hood.

Step 2

Push the latch under the center of the car's hood.

Step 3

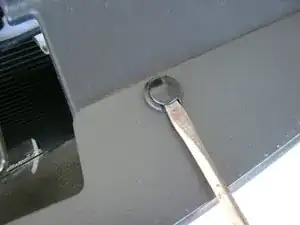

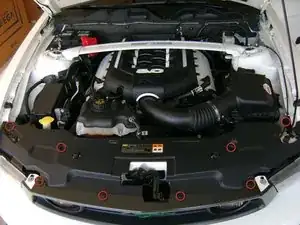

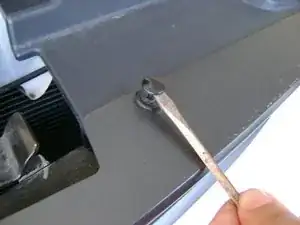

Remove all the pins on the front cover to gain access to the back of the grille.

Step 4

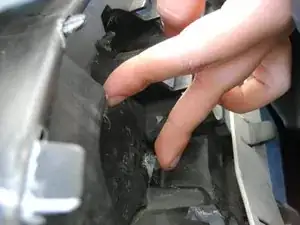

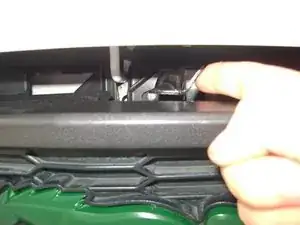

Push on the pins behind the grill to make the pony emblem come out of the front of the grille.

For the 2014 Mustang GT, the pins are secured with metal rings. Simply pushing on them will not release the pony emblem. More details are needed to remove them.

Doug - 02/09/14

Conclusion

To reassemble your device, follow these instructions in reverse order.
