2008-2013 Volkswagen Golf Tail Light Bulb Replacement

Written By: Jeffrey Jacquin
  • Comments: 3
2008-2013 Volkswagen Golf Tail Light Bulb Replacement

Difficulty

Easy

Steps

6

Time Required

5 - 10 minutes

Introduction

The 2008-2013 Volkswagen Golf tail light bulbs may burn out over time. This replacement guide will instruct users how to locate, remove, and replace these light bulbs.

  1. iTaRBL1OTYBZTbCN

    • On the driver's side of the vehicle's rear cargo area, locate the rectangular tail light compartment cover.

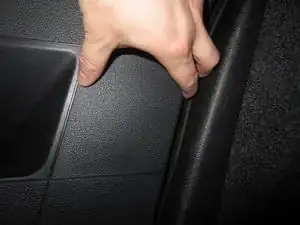

  2. crQ5GHcgYZBaDfyS

    • Using your fingers, gently pull the cover away from the compartment.

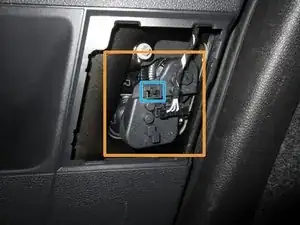

  3. Pv5f5irgZSuAQWxF

    • With the cover removed, locate the light bulb assembly.

    • Use a flathead screwdriver to release the locking tab.

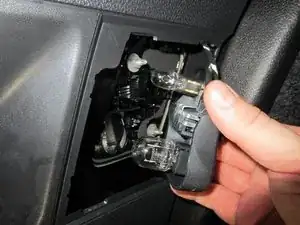

  4. IadW2Fvhjtm4GGgM

    • Pull gently to remove the light bulb assembly.

    • The assembly will remain connected to the vehicle via the wiring harness.

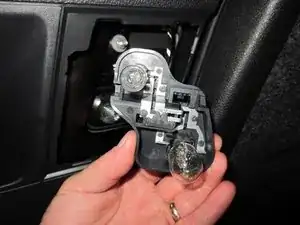

  5. EeRcYMHRYXAIOe6s

    • Turn the assembly so that the smaller tail light bulb and larger fog light bulb are visible.

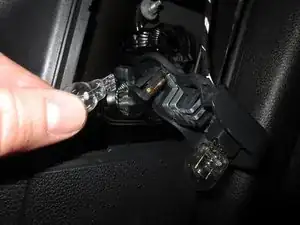

  6. r26K1a2lCIZviqWP

    • Using your fingers, gently pull the tail light bulb out of the socket.

    • Insert a new replacement light bulb into the tail light socket.

    • Excess force may cause light bulbs to break.

    Nice guide! Clear and uncomplicated!

    cperkins -

    what is the model of bulbs?

    koyuehineugene -

    Never touch a light bulb with your bare fingers, if you want to last them long.

    Before removing the bulb always check if the are hot

    Benni B -

Conclusion

To reassemble your device, follow these instructions in reverse order.
