Introduction

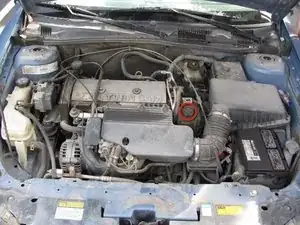

Checking the fluid levels on your car can significantly increase its life. Maintaining the correct fluid levels will prevent engine component failures.
-
-

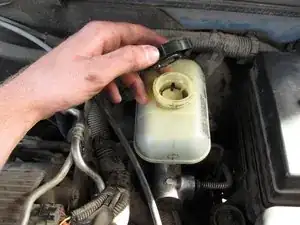

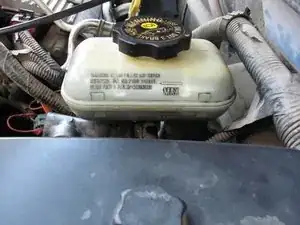

There is a maximum fluid line on the right side of the reservoir. Remove the brake fluid cap and fill the brake fluid to the maximum level line.
-
-
-

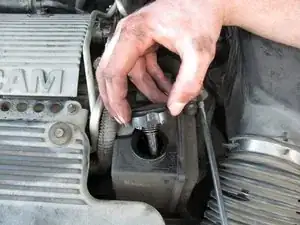

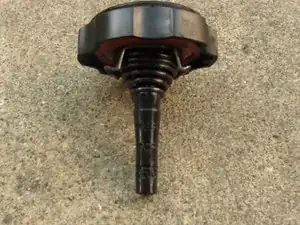

Remove the power steering fluid cap. Check the fluid level using the dipstick attached to the cap.
-
Fill the power steering fluid to the appropriate level indicated by the "H" for hot and the "C" for cold.
-
-
-

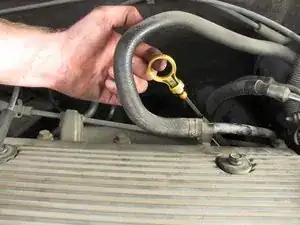

Use the yellow handled oil dipstick to check the oil level by removing the dipstick, wiping off the oil, and re-inserting it.
-

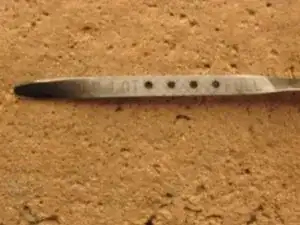

Remove the dipstick again and check the oil level. Full level is read on the right side of the dipstick.
-
-
-

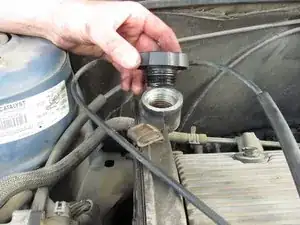

If the oil level is below full, add oil to the car by removing the cap labeled "Engine Oil."
-
Add a small amount of oil and repeat Step 3 until the oil level is full.
-
-
-

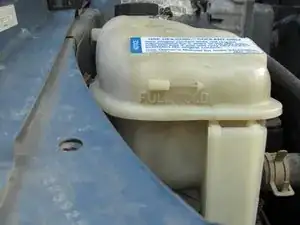

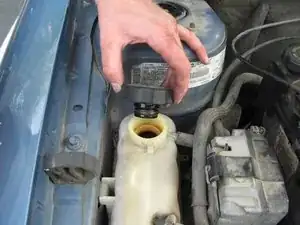

Remove the radiator reservoir cap and fill it with coolant until it reaches the full level indicator line on the front side of the reservoir.
-
To reassemble your device, follow these instructions in reverse order.
