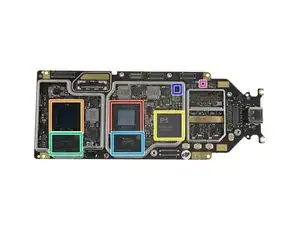

DJI Mavic 3 Pro Chip ID

DJI Mavic 3 Pro Chip ID

Background

Debuting DJI's first tri-lens camera system, the Mavic 3 Pro still manages to retain most of the base Mavic 3's form factor while offering a number of iterative upgrades.

Identification

The Mavic 3 Pro can be easily identified with the name printed on the propeller arm. If this is missing or damaged, it looks nearly identical to the Mavic 3 but has three cameras at the front instead of two.

Specifications

Aircraft

  • Takeoff Weight
    • Mavic 3 Pro: 958 g
    • Mavic 3 Pro Cine: 963 g
  • Dimensions
    • Folded (without propellers): 231.1×98×95.4 mm (L×W×H)
    • Unfolded (without propellers): 347.5×290.8×107.7 mm (L×W×H)
  • 8 m/s Max Ascent Speed
  • 6 m/s Max Descent Speed
  • 21 m/s Max Horizontal Speed (at sea level, no wind)
  • 6000 m Max Takeoff Altitude
  • 43 minutes Max Flight Time
  • 37 minutes Max Hovering Time
  • 28 km Max Flight Distance
  • 12 m/s Max Wind Speed Resistance
  • 35° Max Pitch Angle
  • -10° to 40° C (14° to 104° F) Operating Temperature
  • GPS + Galileo + BeiDou
  • Hovering Accuracy Range
    • Vertical:
      • ±0.1 m (with vision positioning)
      • ±0.5 m (with GNSS positioning)
    • Horizontal:
      • ±0.3 m (with vision positioning)
      • ±0.5 m (with high-precision positioning system)
  • Internal Storage
    • Mavic 3 Pro: 8 GB (approx. 7.9GB available space)
      Mavic 3 Pro Cine: 1 TB (approx. 934.8GB available space)

Camera

  • Image Sensor
    • Hasselblad Camera: 4/3 CMOS, Effective Pixels: 20 MP
      Medium Tele Camera: 1/1.3″ CMOS, Effective Pixels: 48 MP
      Tele Camera: 1/2″ CMOS, Effective Pixels: 12 MP
  • Lens
    • Hasselblad Camera
      FOV: 84°
      Format Equivalent: 24mm
      Aperture: f/2.8-f/11
      Focus: 1 m to ∞

      Medium Tele Camera
      FOV: 35°
      Format Equivalent: 70mm
      Aperture: f/2.8
      Focus: 3 m to ∞

      Tele Camera
      FOV: 15°
      Format Equivalent: 166mm
      Aperture: f/3.4
      Focus: 3 m to ∞
  • ISO Range
    • Video
      Normal and Slow Motion:
      100-6400 (Normal)
      400-1600 (D-Log)
      100-1600 (D-Log M)
      100-1600 (HLG)

      Night:
      800-12800 (Normal)

      100-6400
  • Shutter Speed
    • Hasselblad Camera: 8-1/8000 s
      Medium Tele Camera: 2-1/8000 s
      Tele Camera: 2-1/8000 s
  • Max Image Size
    • Hasselblad Camera: 5280×3956
      Medium Tele Camera: 8064×6048
      Tele Camera: 4000×3000
  • Still Photography Modes
    • Hasselblad Camera
      Single Shot: 20 MP
      Burst Shooting: 20 MP, 3/5/7 frames
      Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
      Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s

      Medium Tele Camera
      Single Shot: 12 MP or 48 MP
      Burst Shooting: 12 MP or 48 MP, 3/5/7 frames
      Automatic Exposure Bracketing (AEB): 12 MP or 48 MP, 3/5 frames at 0.7 EV step
      Timed:
      12 MP: 2/3/5/7/10/15/20/30/60 s
      48 MP: 7/10/15/20/30/60 s

      Tele Camera
      Single Shot: 12 MP
      Burst Shooting: 12 MP, 3/5/7 frames
      Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 0.7 EV step
      Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s
  • Photo Format
    • JPEG/DNG (RAW)
  • Video Resolution
    • Hasselblad Camera
      Apple ProRes 422 HQ/422/422 LT
      5.1K: 5120×2700@24/25/30/48/50fps
      DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
      4K: 3840×2160@24/25/30/48/50/60/120*fps

      H.264/H.265
      5.1K: 5120×2700@24/25/30/48/50fps
      DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
      4K: 3840×2160@24/25/30/48/50/60/120*fps
      FHD: 1920×1080@24/25/30/48/50/60/120*/200*fps
      * Recording frame rates. The corresponding video plays as slow-motion video.

      Medium Tele Camera
      Apple ProRes 422 HQ/422/422 LT
      4K: 3840×2160@24/25/30/48/50/60fps

      H.264/H.265
      4K: 3840×2160@24/25/30/48/50/60fps
      FHD: 1920×1080@24/25/30/48/50/60fps

      Tele Camera
      Apple ProRes 422 HQ/422/422 LT
      4K: 3840×2160@24/25/30/48/50/60fps

      H.264/H.265
      4K: 3840×2160@24/25/30/50/60fps
      FHD: 1920×1080@24/25/30/50/60fps

      Only the Cine version supports ProRes recording.
  • Video Format
    • MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
      MOV (Apple ProRes 422 HQ/422/422 LT)

      Only the Cine version supports ProRes recording.
  • Max Video Bitrate
    • Hasselblad Camera:
      H.264/H.265: 200 Mbps
      ProRes 422 HQ: 3772 Mbps
      ProRes 422: 2514 Mbps
      ProRes 422 LT: 1750 Mbps

      Medium Tele Camera:
      H.264/H.265: 160 Mbps
      ProRes 422 HQ: 1768 Mbps
      ProRes 422: 1178 Mbps
      ProRes 422 LT: 821 Mbps

      Tele Camera:
      H.264/H.265: 160 Mbps
      ProRes 422 HQ: 1768 Mbps
      ProRes 422: 1178 Mbps
      ProRes 422 LT: 821 Mbps

      Only the Cine version supports ProRes recording.
  • Supported File System
    • exFAT
  • Color Mode and Sampling Method
    • Hasselblad Camera
      Normal:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      8-bit 4:2:0 (H.264/H.265)
      D-Log:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      10-bit 4:2:0 (H.264/H.265)
      HLG/D-Log M:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      10-bit 4:2:0 (H.265)

      Medium Tele Camera
      Normal:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      8-bit 4:2:0 (H.264/H.265)
      HLG/D-Log M:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      10-bit 4:2:0 (H.265)

      Tele Camera
      Normal:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      8-bit 4:2:0 (H.264/H.265)
      HLG/D-Log M:
      10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
      10-bit 4:2:0 (H.265)

      Only the Cine version supports ProRes recording.
  • Digital Zoom (only in Normal Video Mode and Explore Mode)
    • Hasselblad Camera: 1-3x
      Medium Tele Camera: 3-7x
      Tele Camera: 7-28x

Gimbal

  • 3-axis mechanical gimbal (tilt, roll, pan)
  • Mechanical Range
    • Tilt: -140° to 50°
      Roll: -50° to 50°
      Pan: -23° to 23°
  • Controllable Range
    • Tilt: -90° to 35°
      Pan: -5° to 5°
  • Max Control Speed (tilt)
    • 100°/s
  • Angular Vibration Range
    • Hovering Without Wind: ±0.001°
      Normal Mode: ±0.003°
      Sport Mode: ±0.005°

Sensing

  • Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
  • Forward Measurement Range:
    • 0.5-20 m
      Detection Range:
      0.5-200 m
      Effective Sensing Speed:
      Flight Speed ≤ 15 m/s
      FOV:
      Horizontal 90°, Vertical 103°
  • Backward Measurement Range:
    • 0.5-16 m
      Effective Sensing Speed:
      Flight Speed ≤ 12 m/s
      FOV:
      Horizontal 90°, Vertical 103°
  • Lateral Measurement Range:
    • 0.5-25 m
      Effective Sensing Speed:
      Flight Speed ≤ 15 m/s
      FOV:
      Horizontal 90°, Vertical 85°
  • Upward Measurement Range:
    • 0.2-10 m
      Effective Sensing Speed:
      Flight Speed ≤ 6 m/s
      FOV:
      Front and Back 100°, Left and Right 90°
  • Downward Measurement Range:
    • 0.3-18 m
      Effective Sensing Speed:
      Flight Speed ≤ 6 m/s
      FOV:
      Front and Back 130°, Left and Right 160°
  • Operating Environment
    • Forward, Backward, Left, Right, and Upward:
      surfaces with discernible patterns and adequate lighting (lux > 15)
      Downward:
      surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)
